GT-L2284-D-7

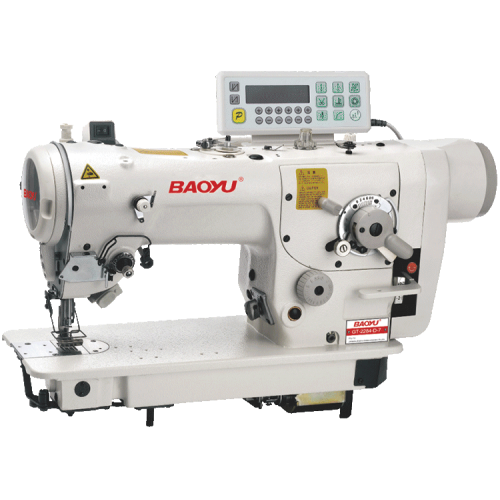

Direct Drive High Speed Auto Trimmer Zigzag Machine Series(1 Step 2 Point, 3 Step 4 Point Function)
Преимущества продукта

The machine uses a new rotary thread take-up lever to obtain high-quality and stable stitches even under big tension. Using the spindle with compensation mechanism, the left and right position of the hook is equal when hooking thread.which can prevent thread jump and break. For flexible fabrics, equipped with a small amount of presser foot lifting device will make the presser up float gently,and then start sewing, sewing thread clean and beautiful.Specially designed thread winder, faster and more convenient, GT-2284-Dseries, one machine can achieve straight stitch, 2 point zigzag stitch, 4 point zigzag stitch, pattern stitch, direct drive and with automatic thread cutting function,greatly improve the production and use efficiency of the machine.


Поле применения



Спецификации
Machine typeGT-2284GT-2284-DGT-2284-D-7GT-2284-D-7/P
Machine needleDPX5 10#-14#DPX5 10#-14#DPX5 10#-14#DPX5 10#-14#

Foot lifter height

5.5-105.5-105.5-105.5-10

Auto thread trimmin

————
Stitch width8888

Auto foot lifter

——————

Max speed(rp.m)

5000450045004500

Package size

660x350x620660x350x620660x350x620660x350x620

Gross/net weight

47/3947/3947/3947/39
