GT-N95130W

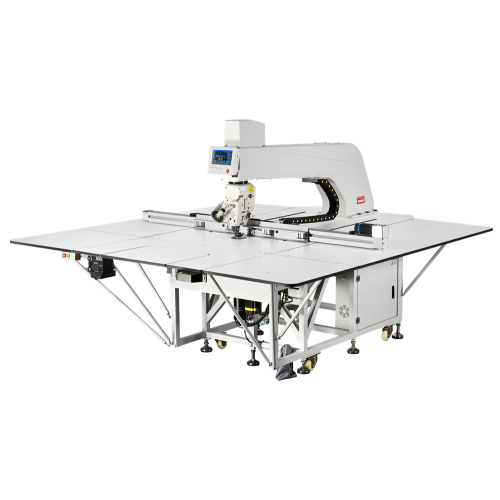

Anti Bird-Nest Template Machine
Преимущества продукта

Ultra-High Speed Template Machine, Faster Speed, Reduced Vibration, Quieter Operation, Wireless Communication Ready includes Wi-fi router for remote software upgrades, pattern transfers, and parameter settings.Jotional lot Customization Enables wired or wireless remote data exchange with production management systems.Direct Pattern lmport & Editing via Touchscreen Streamlines design workflow



360 degree rotary sewing



Laser cutting device (optional)



Integrated casting large base



Integrated casting machine arm

Спецификации
Machine   typeGT-N95130WGT-N95150WGT-N95160WGT-N95180WGT-N95200WGT-N95240W
Sewing Range  900X1300900X1500900X1600900X1800900X2000900X2400
Max   Speed380038003800380038003800
Needle   gauge0.1-200.1-200.1-200.1-200.1-200.1-20
Machine   needleDPX5 7-24#DPX5 7-24#DPX5 7-24#DPX5 7-24#DPX5 7-24#DPX5 7-24#
Hook2 times push2 times push2 times push2 times push2 times push2 times push
Pressure0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa
Foot   liting height202020202020
Y   feeding modeDual lead screwsDual lead screwsDual lead screwsDual lead screwsDual lead screwsDual lead screws
X   feeding modeLead Screw、Timing BeltLead Screw、Timing BeltLead Screw、Timing BeltLead Screw、Timing BeltLead Screw、Timing BeltLead Screw、Timing Belt
Table   open size2400X22002400X32002400X32002400X37002400X41002400X4800
Package   size

1960X1150X1740

With 130W laser, length: 2180mm

1960X1150X1740

With 130W laser, length: 2180mm

1960X1150X1740

With 130W laser, length: 2180mm

1960X1150X1740

With 130W laser, length: 2180mm

1960X1150X1740

With 130W laser, length: 2180mm

1960X1150X1740

With 130W laser, length: 2180mm

Gross/net   weight636657663680705735
