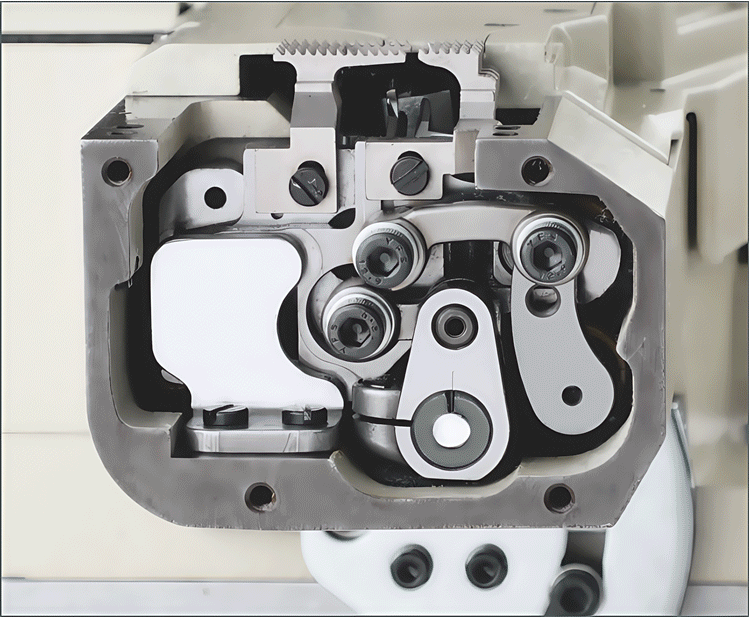

Two-stage differential feed
wo-step differential feed ratio more suitablefor different kinds of fabrics

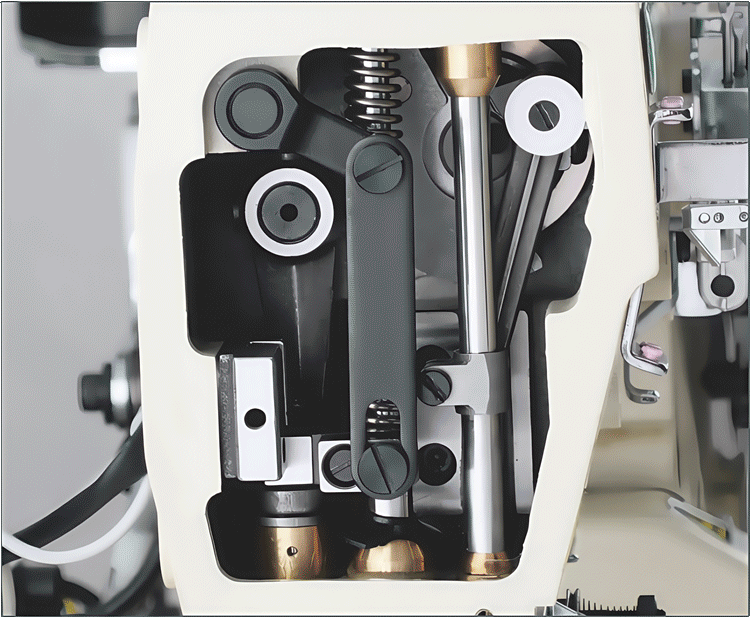

Adjustable needle bar stroke
Needle bar stroke convertible to 31 and 33mmis applicable to various production.

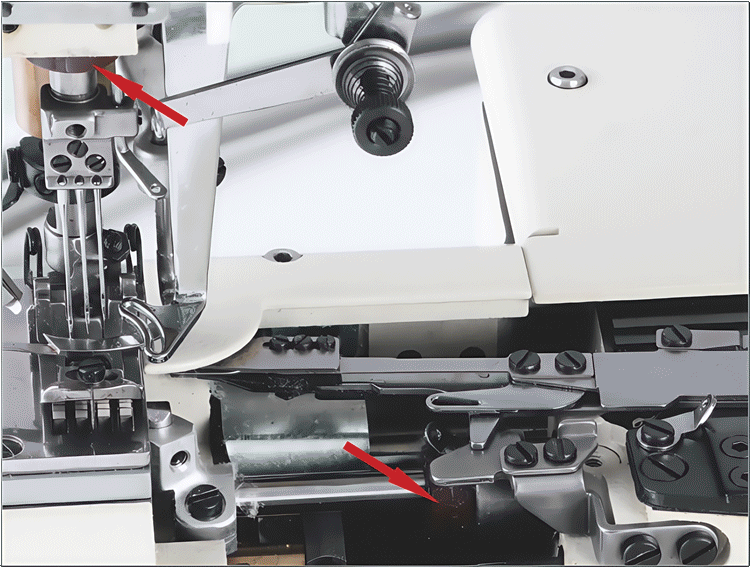

Centrally positioned thread take-up cam
The middle-mounted threading cam is simple andeasy to adjust for threading,the stitches arebeautiful, and the maintenance is more convenient;
Oil-blocking function
The imported material sealing ring is used toeffectively avoid oil leakage of the needle barand the lower looper spindle,

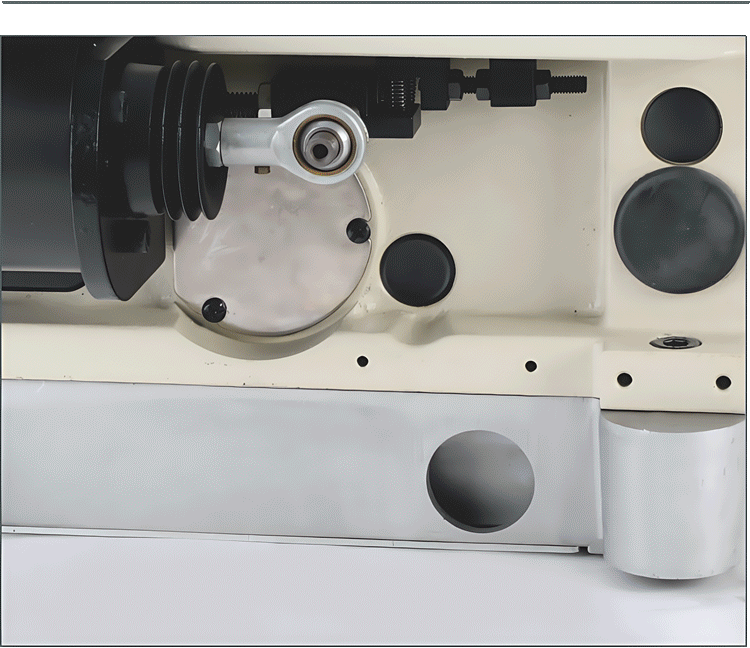

Oil pan cooling vent (patented design)
The patented oil pan air outlet can dissipate theheat of the oil pan through the motor fan durin go peration, thereby reducing the temperature of the whole machine,making the machine run more stably and have a longer life

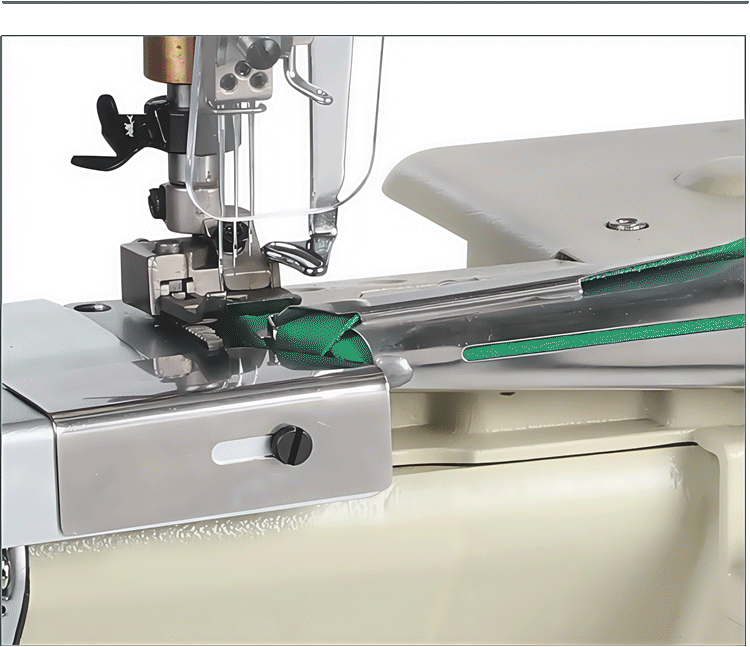

Three-in-one function
“Three-in-one function" (Stitch covering, standing ribcovering hemming and tape binding)

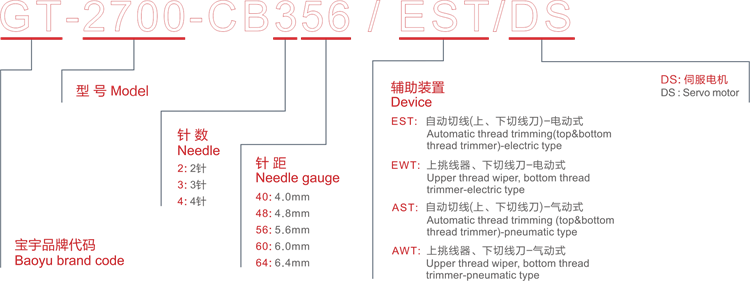

Model | GT-2700-CB240 | GT-2700-CB248 | GT-2700-CB348 | GT-2700-CB356 | GT-2700-CB364 | GT-2700-CB456 |
Number of siches | 2 | 2 | 3 | 3 | 3 | 4 |
Thread number | 3 | 3 | 5 | 5 | 5 | 6 |
| Stitch length | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 |
Needles distance | 4.0 | 4.8 | 4.8 | 5.6 | 6.4 | 5.6 |
| Diferential feed ratio | 1:0.6-1:2.1 | 1:0.6-1:2.1 | 1:0.6-1:2.1 | 1:0.6-1:2.1 | 1:0.6-1:2.1 | 1:0.6-1:2.1 |
Foot lifter height | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| Max speed(rp.m) | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 |
Device | EST，EWT，AST，AWT | EST，EWT，AST，AWT | EST，EWT，AST，AWT | EST，EWT，AST，AWT | EST，EWT，AST，AWT | EST，EWT，AST，AWT |
