GT-1500-L/380

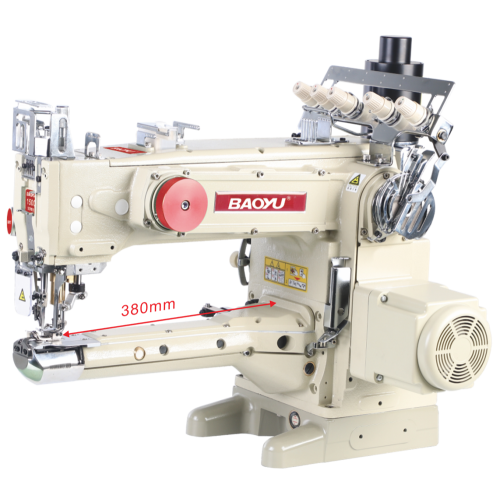

High Speed Long Arm Cylinder Bed Interlock Sewing Machine With Automatic Trimmer

Видео введения продукта

Преимущества продукта

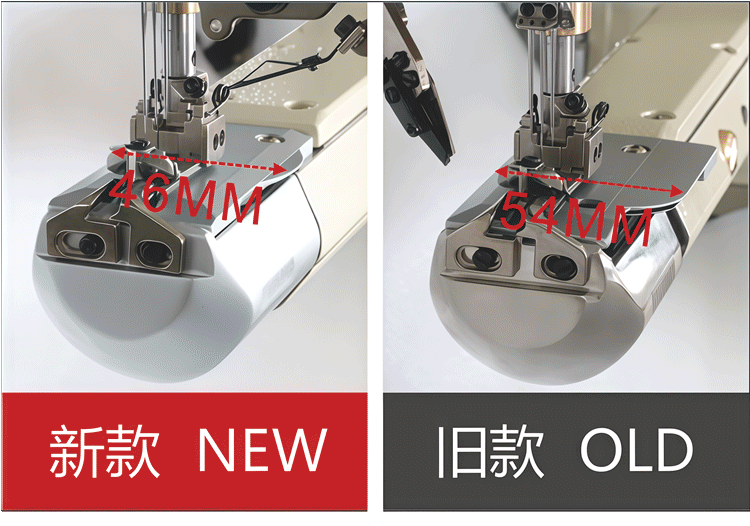

One-Piece Needle Plate

The shape of the needle plate is reduced, making it easier to sew small-diameter tubular garments

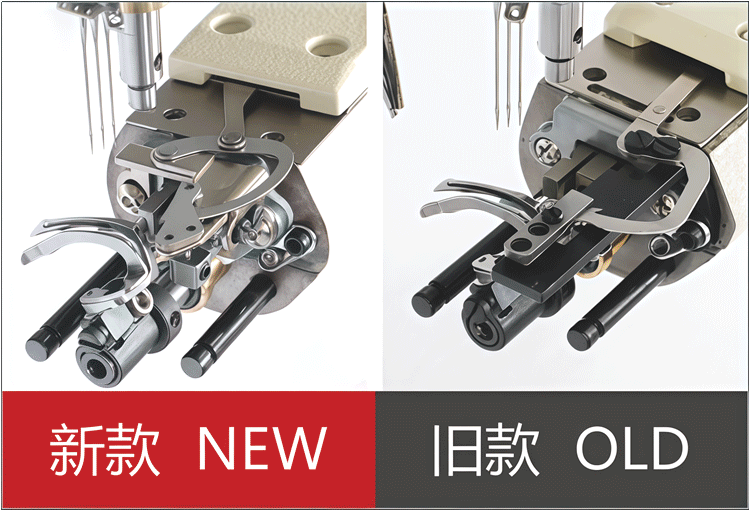

One-Piece Cutter Head Assembly (Patented Design)

One-piece cutter head, solid structure, movable knife and fixed knife can be adjusted synchronously,more stable thread trimming and clamping

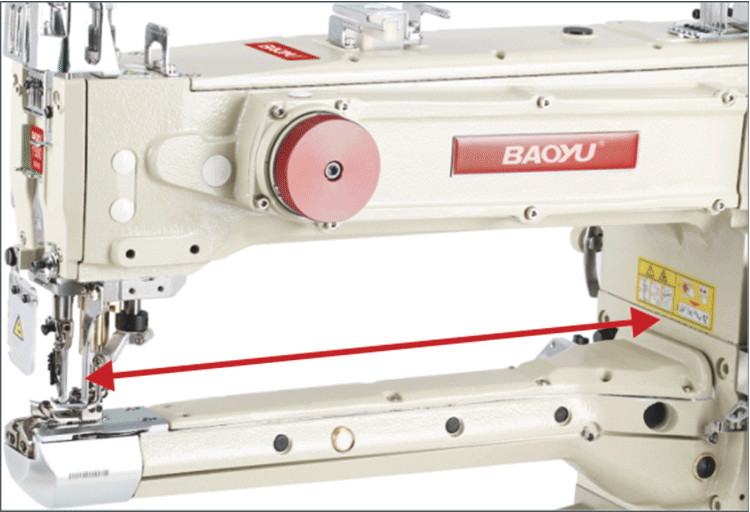

Working clearance increased to 380 mm

The sewing space is enlarged, making it moreconvenient to sew elongated tubular garments


Поле применения

This machine is suitable for some special procss in garment making, interl ocking and cover sewing of small caliber parts, such as collar, sleeve, elastic lace of all kinds of garment, specially for knitting ware, sports ware, swimming suit and all kinds of leisure clothes, jacket etc. applicable to sewing of cotton wool, cloth and knitting wear for garment factory.

Этапная доска



Спецификации

Machine type	GT-1500L-240	GT-1500L-248	GT-1500L-264	GT-1500L-356	GT-1500L-464	GT-1500L-460
Scope of application	Hemming. Neckline Binding. Topstitching. Seam	Hemming. Neckline Binding.Topstitching. Seam	Hemming. Neckline Binding.Topstitching. Seam. Taping	Hemming. Neckline Binding.Topstitching. Seam	Hemming. Neckline Binding.Topstitching. Seam	Hemming. Neckline Binding.Topstitching. Seam
Machine needle	UY128GAS 9-16#	UY128GAS 9-16#	MY1014B 9-16#	UY128GAS 9-16#	MY1014B 9-16#	MY1014B 9-16#
Number of stitches	2 (3)	2 (3)	2 (3)	2 (3)	2 (3)	2 (3)
Thread number	4(5)	4(5)	4	4(5)	4(5)	4(5)
Needles distance	4.0	4.8	6.4	5.6	6.4	6.0
Stitch widt	1.2-4	1.2-4	1.2-4	1.2-4	1.2-4	1.2-4
Foot lifter height	9	9	9	9	9	9
Max speed(rp.m)	5000	5000	5000	5000	5000	5000
Package size	430x284x360	430x284x360	430x284x360	430x284x360	430x284x360	430x284x360
Gross/net weight	47/42	47/42	47/42	47/42	47/42	47/42
