GT-D81-FPM

GT-D81-FPM
FullyAutomatic Pocket Setting Machine
Product Introduction Video
Product advantages

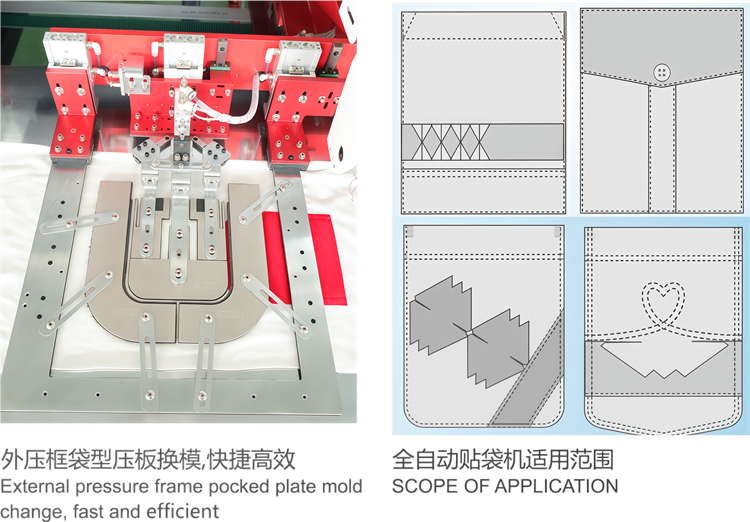

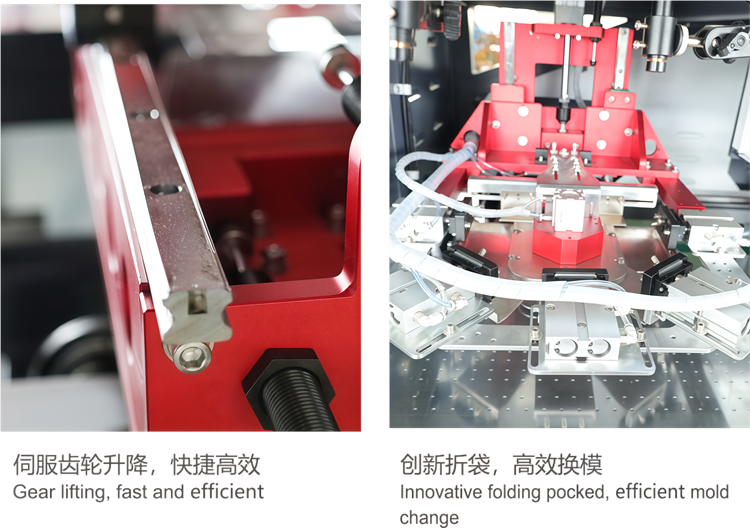

With excellent control over special soft, elastic and smooth fabrics. Mold can be quickly changed, suitable for both thick and thin fabrics. The bartacking machine head can accommodate sewing of both heavy and light materials, and with the addition of a presser foot, it can achieve perfect stitching.





Application field

Ideal for patch pocket and back patch applications on jeans, knitted garments, shirts, work uniforms, home wear, military uniforms, etc.



Specifications

Production capacity

240-300pcs/hour

Hook type

Shuttle hook

Max sewing range

240x280mm

Min sewing range

40x40mm

Max speed

3600PRM

Stitch length

0.1-12.7mm

Machine size

173x154x160cm

Weight/G.W

450/590KG

Working voltage

AC220V

Working air pressure

5Bar

Air consumption

 230L/min
